It has never been so simple, accurate and complete

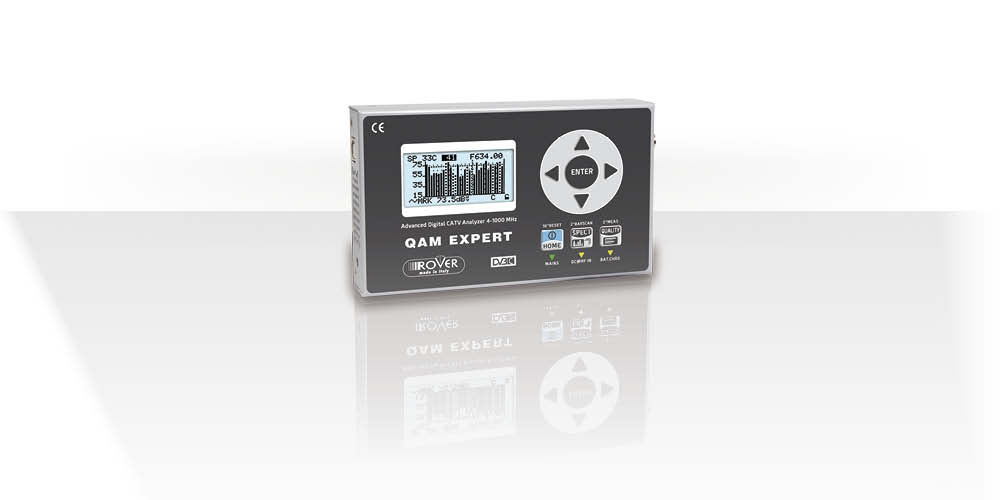

QAM Expert

A well job done in 3 seconds! Connect the CATV socket and automatically SCAN the power and quality up-to 140 channels in blocks of 8 channels

  • Easy to use fully automatic
  • Simultaneous analysis in blocks of 8 digital and/or ANALOG channels
  • Fully automatic measurements
  • Fast quality measurementsS
  • Worldwide TV standards
  • Li-Po long battery duration
  • Robust metal housing

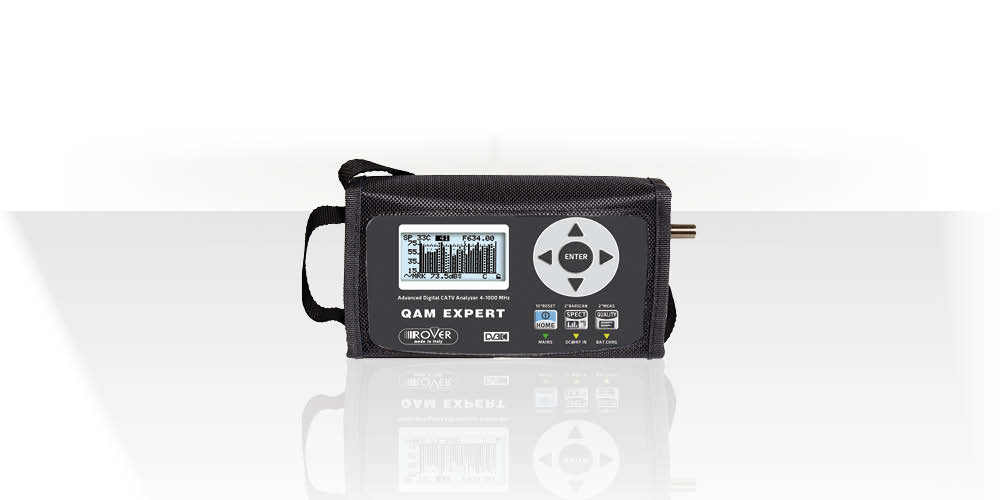

  • Rain proof bag

Visita WWW.ROVERSHOP.IT per consultare gli accessori disponibili.


  • Tutte le caratteristiche tecniche possono subire variazioni e senza preavviso;
  • Alcune opzioni (APP) devono essere richieste al momento dell’ordine dello strumento;
  • Le schermate e le scritte dei relativi MENU, possono variare senza preavviso da modello a modello e in base alla versione SW installata.


  • Frequency range: 5 MHz to 1.000 MHz

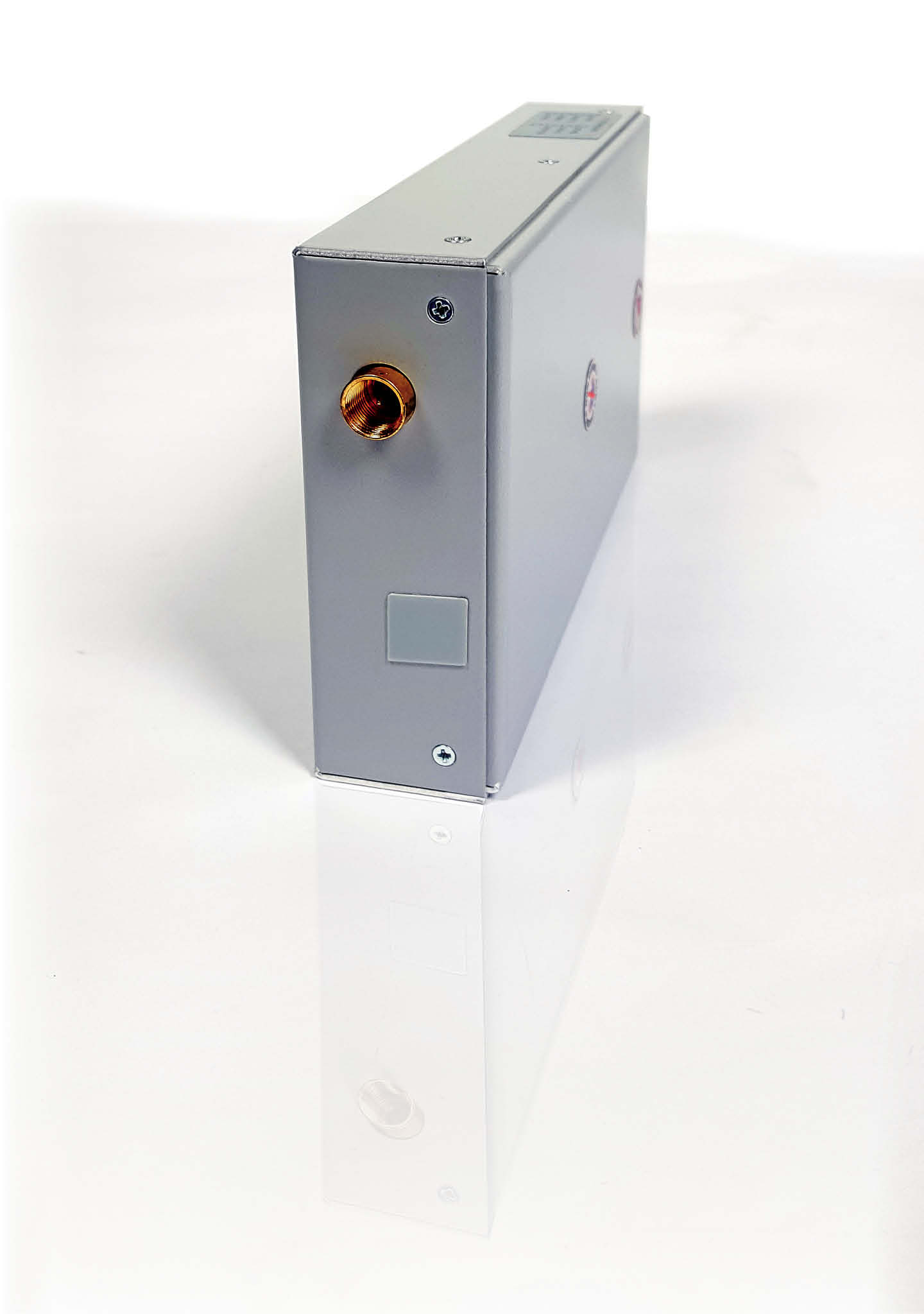

  • Input impedance: 75 ohm (interchangeable “F” connector)
  • Power range MEAS.: from 10 to 100 dBμV (-50 dBmV to 60 dBmV) 120 dBμV with external attenuator
  • Fast spectrum with MAX HOLD: full spectrum capabilities with peak memory, variable span and automatic reference level
  • Meas: all digital and analog measurements, see table below
  • Quality FAIL – MARGINAL – PASS: measuring the quality and the power up-to 140 chs in blocks of 8
  • Digital or analog channels simultaneously
  • Barscan: TV analog and digital bars scan form 10 to 100 channels
  • Memory plan: world wide countries with related channels plans are pre-memorized
  • Free basic SW upgradeable on-line


  • DC voltage at RF input: 5 VDC
  • Battery: rechargeable Li-Po battery pack, 5 hour duration

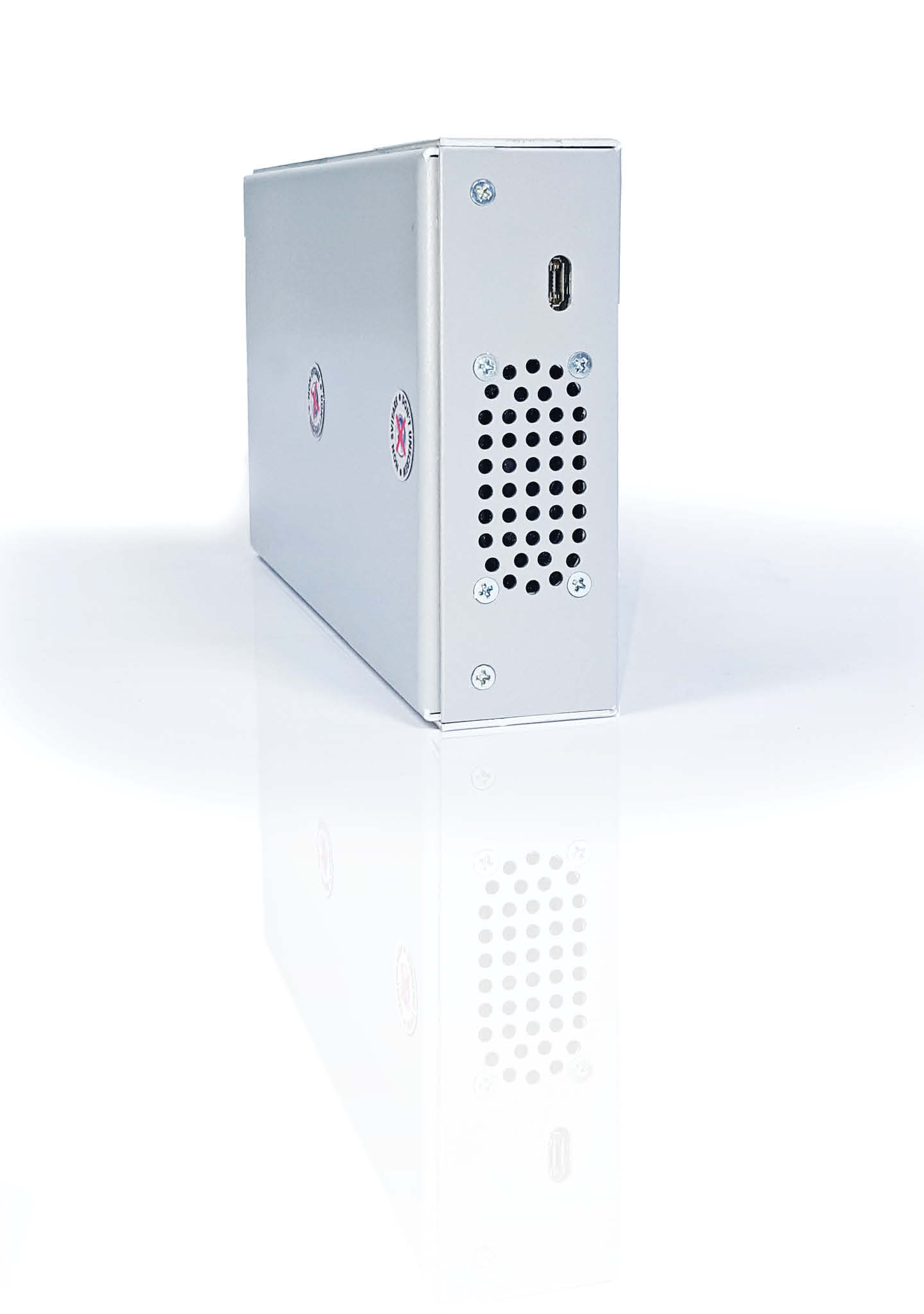

  • USB micro: for battery charge and pc interface for SW up-grade and memory plan management
  • Housing: metal box and rain proof bag
  • Size: H 95 x W 160 x D 34 mm (meter only)
  • Weight: 500 gr

Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument

QAM Expert home menu QAM Expert quality test
 Icon menu 8 digital channels block analysis
QAM Expert digital specrum QAM Expert measure 1
 Spectrum with memory peak DVB-C measurements

Note *: The MENU (writing and graphic) of the figures shown may varies without notice depending on the model according to the SW version installed

APP SW and HW optional *:

  • Currently not available

List of supplied accessories *:

  • Easy bag (BAG-0180-G)
  • Shoulder strap
  • USB 2.0 cable for PC connection (CAVO-USB-AM-BuM-1)
  • Quick guide (QR-TVEXP-MET-EN-IT)
  • User’s manual (CD) (UG-PD-CD)
  • Female F – female F adapter (CNN-F-0153)

Optional accessories list *:

  • Currently not available

Note *: Options and accessories list, may change without notice and depend on the configuration of the instrument
