Modular and cost-effective Radio Satellite Receiver

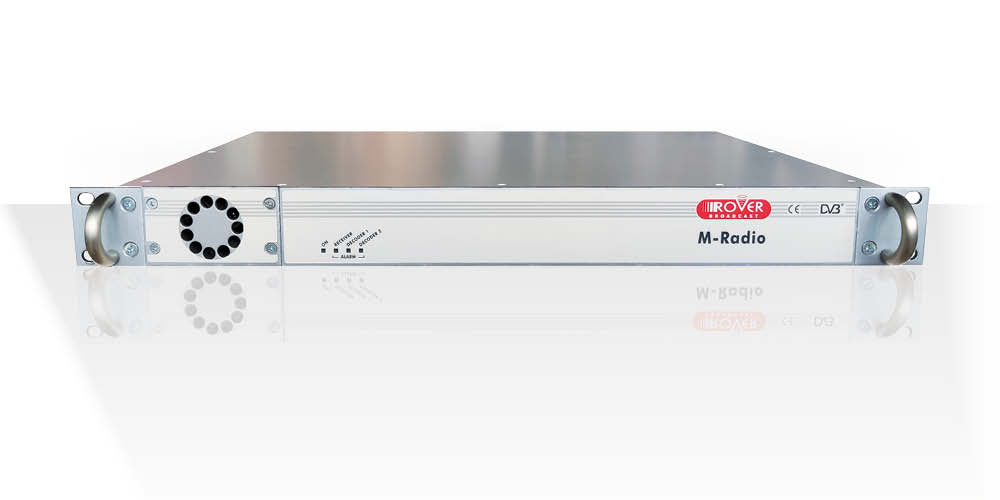

ROVER BROADCAST - M-Radio fro 12-2020

M–Radio has been designed to be a cost-effective solution of modern radio stations that use satellite as a distribution method to the various FM transmitter sites.

It is suitable for the reception of signals transmitted with SAT DVBS/S2 modulation, in single or in multi-stream even with TS aggregates.

It can decode audio with the most commonly used standards and guarantees the correct management of delays, allowing perfect time synchronization in the reception stages, in areas with coverage from adjacent transmitters.

In addition to radio signals RDS allows you to receive content in different ways, adapting to different users’ needs.

M-Radio is in a 1US 19” rack unit with dual power supply that allows easy installation and it is designed for efficient maintenance management.

  • Modular design: up to three modules 1U 19’’ rack
  • Digital audio DVB-S/S2 multistream satellite receiver for SCPC/MCPC broadcast of audio, data
  • 2 activated analog-audio-stereo balanced interfaces
  • 2 activated AES/EBU-SPDIF audio balanced interfaces
  • Supports industry standard ISO/MPEG layer II decoding
  • Decodes 2 Stereo channels
  • LAN interface for software upgrades
  • Web browser and SNMP management
  • 230/110 Vac/12 Vdc dual power supplies
  • FAN hot-plug replaceable
  • Relay alarm

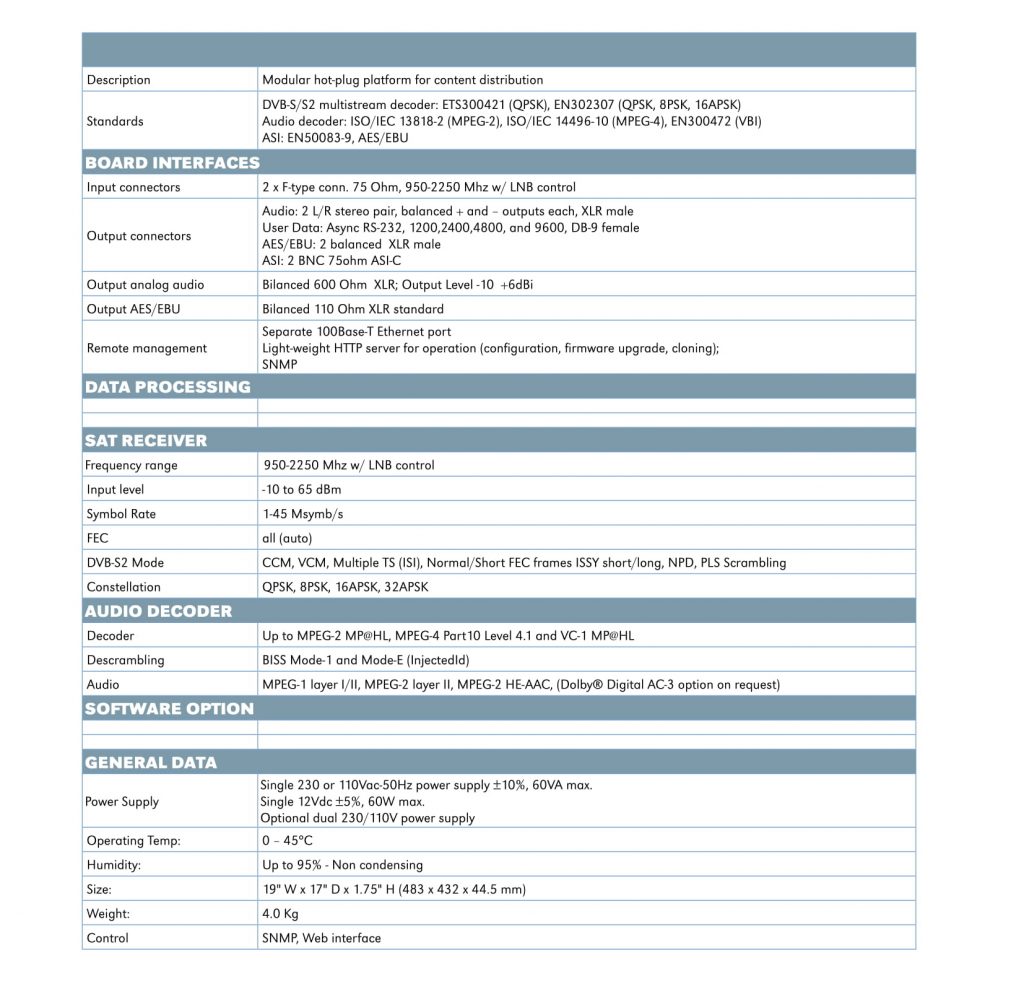

ROVER M-RADIO Technical specification
