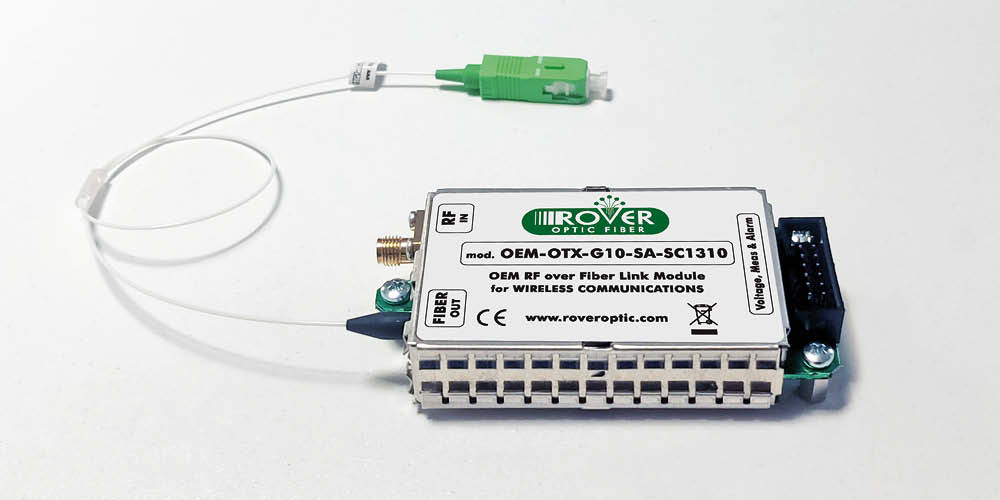

COMPACT OEM MODULES for RF Over Fiber Link

OEM-TX1-X-X

50 – 1000 MHz & 50 – 3000 MHz
For Wireless Cameras & Microphones

ROVER OEM MODULES for RF over FIBER - 4
  • These compact OEM modules are very well shielded and specially designed for Wireless Cameras and Microphones in the Broadcast world.
  • Due to exceptionally Wide Dynamic Range these modules can be used in Wireless Camera systems using COFDM modulation and diversity reception.
  • The modules can be also easily integrated in your broadcast equipments with long or short fiber cable length.
  • Upon request Rover can supply the OEM modules with different Link gain and different Optical and RF connectors.
  • Our Sales and Technical staff are available to support and advise for whatever need.

Specifications and features are subject to change without notice

  • Transport all formats: DVB-T2/S2/C-ATSC-DAB-FM-GPS-GNNS
  • Very low Consumption
  • Exceptionally Wide Dynamic Range
  • Analog Monitor Out for: TX laser current/Received Optical power
  • Compatible with Other Links
  • 5 Years Warranty, reliable support

Specifications and features are subject to change without notice

  • Protected LNA/LNB feed with resettable fuse
  • Presettable Link gain: from -10 to +20 dB
  • RF IN power Measurement (TX)
  • RF OUT power Measurement (RX)
  • 5 Vdc to RF IN for GPS-GNNS Active Antenna
  • CWDM, Up to 4, 8 or 16 channels in 1 Fibre

Specifications and features are subject to change without notice

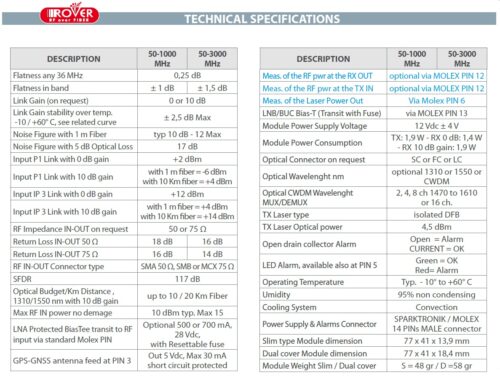

ROVER OEM MODULES for RF Over Fiber Link - OPTICAL LINK SPECIFICATIONS v1,2-2

Specifications and features are subject to change without notice

ROVER OEM MODULES for RF Over Fiber Link - MODULE MODEL CONFIGURATION v1,2-2

Specifications and features are subject to change without notice

ROVER OEM MODULES for RF Over Fiber Link - PIN OUT MOLEX CONNECTOR v1,2-2

Specifications and features are subject to change without notice

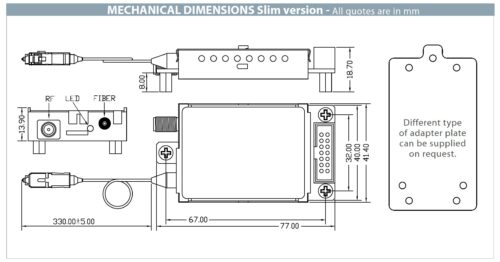

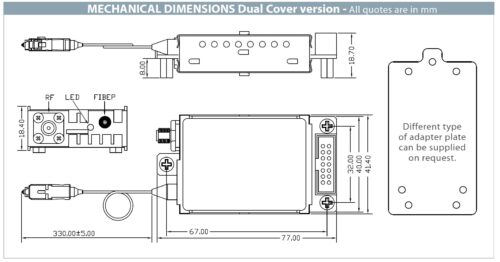

ROVER OEM MODULES for RF Over Fiber Link - MECHANICAL DIMENSION v1,2-2

Specifications and features are subject to change without notice

Download
ROVER OEM MODULES for RF Over Fiber Link v1,2 (PDF file - 543.15 Kb) - Download here

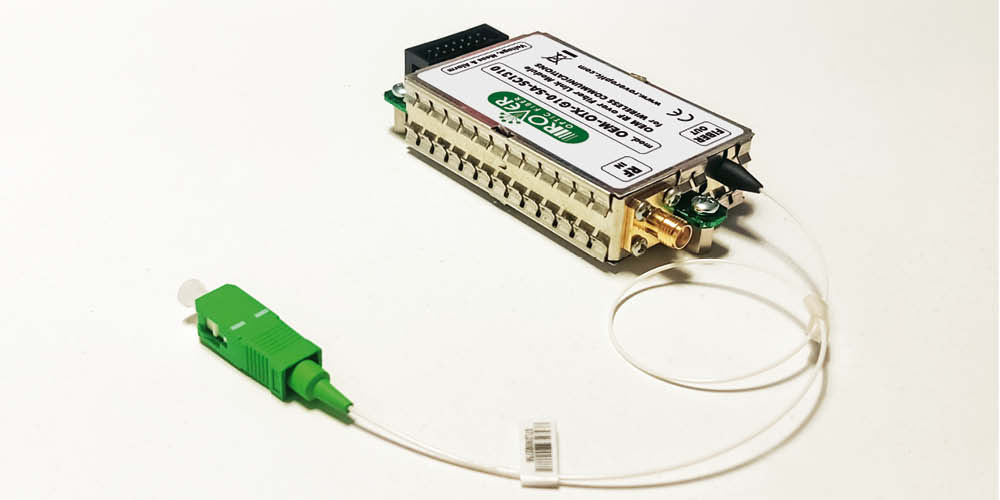

ROVER OEM MODULES for RF over FIBER - 6

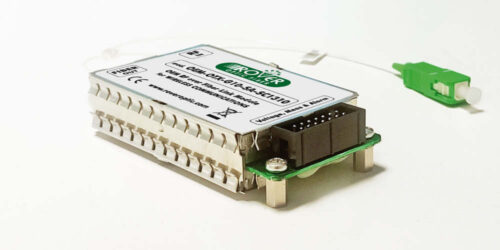

ROVER OEM MODULES for RF over FIBER - 4
