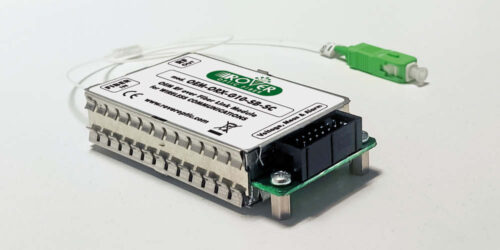

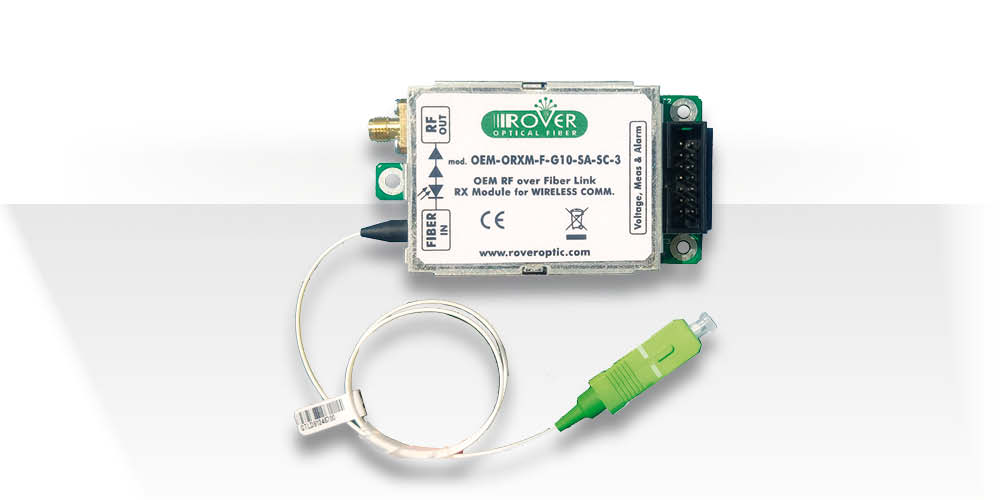

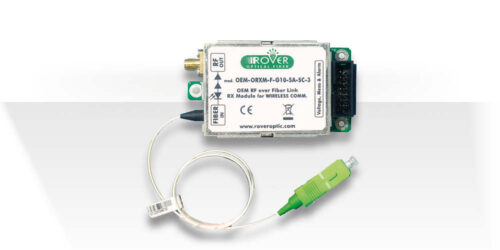

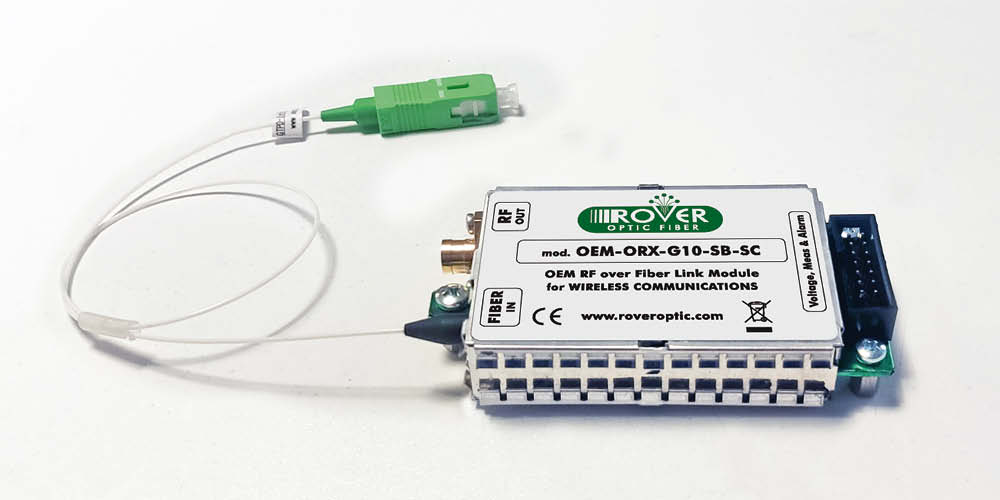

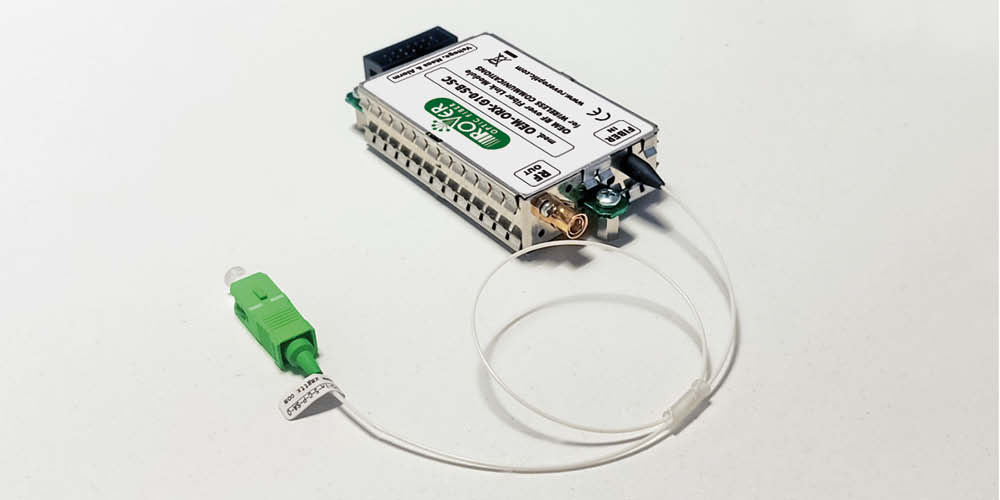

COMPACT OEM MODULES for RF Over Fiber Link

OEM1RX-X-X

50 – 1000 MHz & 50 – 3000 MHz
For Wireless Cameras & Microphones

ROVER OEM MODULES for RF over FIBER - 5
  • These compact OEM modules are very well shielded and specially designed for Wireless Cameras and Microphones in the Broadcast world.
  • Due to exceptionally Wide Dynamic Range these modules can be used in Wireless Camera systems using COFDM modulation and diversity reception.
  • The modules can be also easily integrated in your broadcast equipments with long or short fiber cable length.
  • Upon request Rover can supply the OEM modules with different Link gain and different Optical and RF connectors.
  • Our Sales and Technical staff are available to support and advise for whatever need.

Specifications and features are subject to change without notice

  • Transport all formats: DVB-T2/S2/C-ATSC-DAB-FM-GPS-GNNS
  • Very low Consumption
  • Very low noise & Exceptionally Wide Dynamic Range
  • Analog Monitor Out for: TX laser current/Received Optical power
  • Compatible with Other Links
  • 5 Years Warranty, reliable support

Specifications and features are subject to change without notice

  • Protected LNA/LNB feed with resettable fuse
  • 2 Links gain available: 0dB or +10 dB
  • Laser power Measurement (TX)
  • RF IN power Measurement (TX)
  • RF OUT power Measurement (RX)
  • 5 Vdc Out, 30mA for GPS-GNNS Active Antenna
  • CWDM, Up to 2, 4 or 8 channels in 1 Fibre

Specifications and features are subject to change without notice

Specifications and features are subject to change without notice



Specifications and features are subject to change without notice

Specifications and features are subject to change without notice

Specifications and features are subject to change without notice

Download
