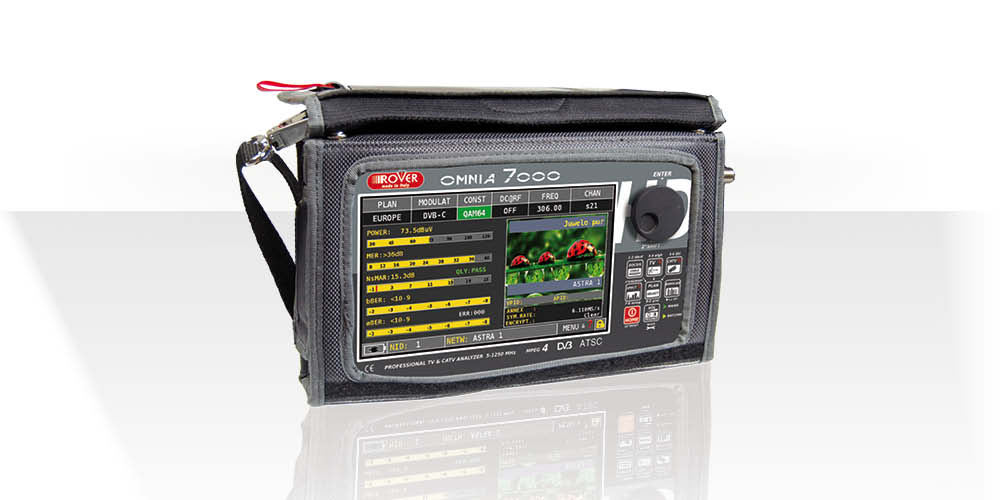

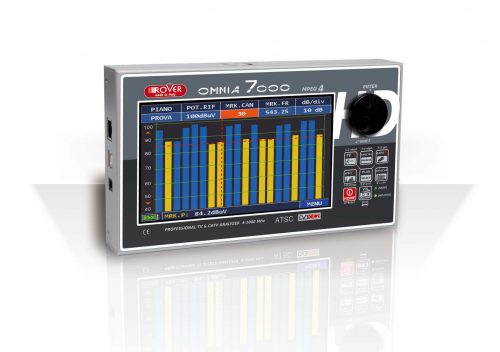

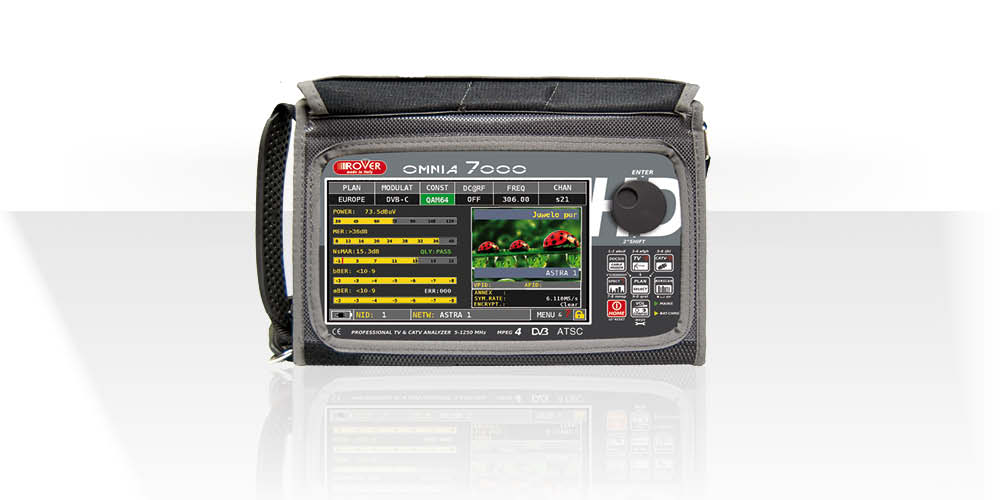

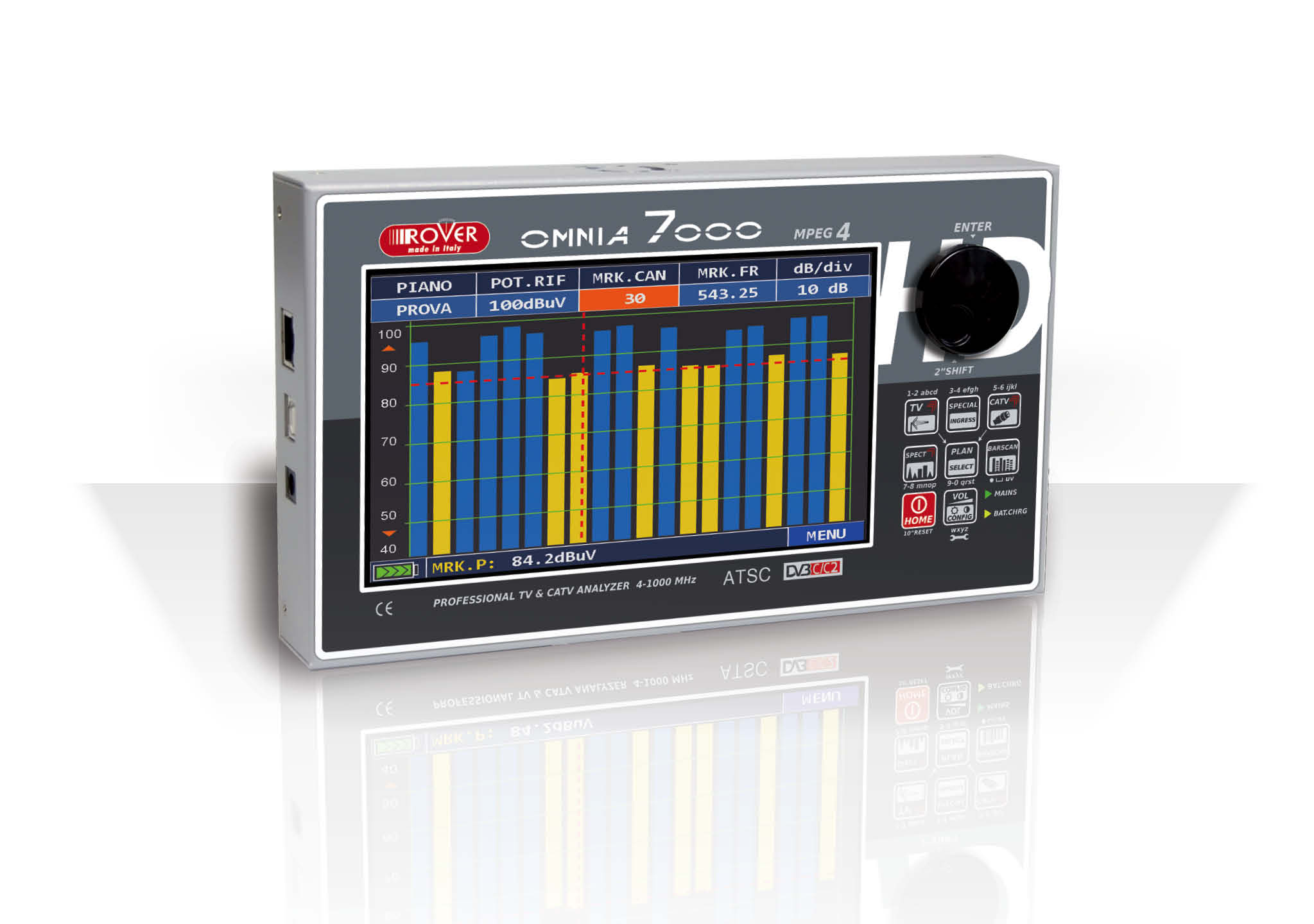

The most advanced and accurate tablet analyzer

OMNIA 7000

  • Frequency range from 5 to 1250 MHz extended CATV and GSM telephone bands
  • Digital RF measurements 5 MHz to 1,25 GHz including average power/level, pre/post BER, MER versus CARRIER (opt.), noise Margin, spectral analysis, and constellation
  • INGRESS mode, LEAKAGE mode, BARSSCAN and TILT
  • DOCSIS 3.0 upstream and downstream capabilities, 8 x 4 channel bonding with automatic lock to CMTS, for complete modem installation testing for both forward and return path analysis (opt.)
  • Ping report, Network IP configuration
  • Lost Packet measurements, latency time and PER
  • DOCSIS upstream tone generator 5–65 MHz
  • OPTICAL POWER METER with interchangeable FC-STSC connector for fiber optic testing (FTTH & FTTX) and troubleshooting (opt.)
  • User definable channel scan testing /logging with automatic quality analysis: FAIL-PASS-MARG
  • Assisted navigation, memory plans and automatic channel scan
  • Available with all world-wide channel plans
  • Alpha/numeric keypad for direct chan/freq selection
  • SMART software PC interface for meter upgrades, channel plans and AutoScan testing/logging management
  • Detects, measures and SHOWS pictures of MPEG 2 and 4 H264 HD high definition programs
  • Automemory, Manual memory & Datalogger functions
  • Barscan TV & CATV function from 10 to 100 channels on one screen
  • Audio, AAC supplied, DOLBY (opt.)
  • 7” TFT TOUCH display, 16:9, high resolution
  • Weighs only 1.6 kg, dim: H 14 x L 24 x D 4 cm
  • LI-POLIMER 4A battery with 4 hr battery capacity
  • Battery test function, to regenerate and measure the batteries and calibrate the battery indicator
  • Supplied with transport padded bag, accessories, mains and vehicle battery chargers
  • Free S.M.A.R.T. PC interface program and FW upgrades

Visita WWW.ROVERSHOP.IT per consultare gli accessori disponibili.

Nota *: Tutte le caratteristiche tecniche possono subire variazioni e senza preavviso. Alcune opzioni vanno richieste al momento dell’ordine dello strumento

LEVEL MEASUREMENT & SPECTRUM ANALYSIS

  • Frequency range: TV, CATV & and radio 5-1250 MHz
  • Frequency resolution: 25 KHz
  • RF input impedance: 75 Ω (interchangeable “F” connector)
  • Dynamic range: 1 dBuV to 125 dBuV or -59 to +65 dBmV or -112 to +16 dBm
  • Measurement resolution: 0.1 dB
  • Level measurement accuracy: 1 dB typ. (2 dB max.)
  • A/V ratio: up to 22 dB, +/- 1.5 dB (2 dB max.)

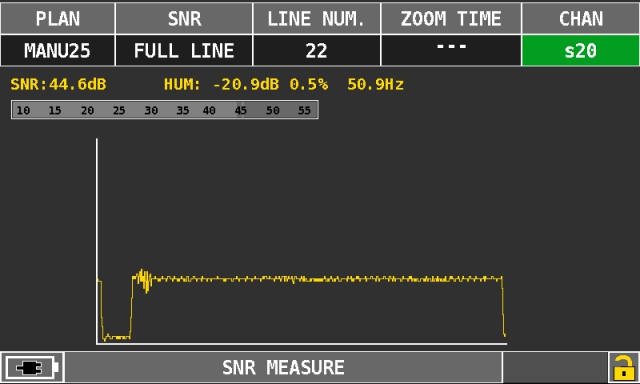

  • S/N ratio: up to 45dB +/-1.5 dB Max; 45-50dB +/-2dB
  • Resolution filter bandwidth: 100 KHz @ -3 dB
  • Custom channel plans: 25 (199 ch. per plan)

POWER & DIGITAL MEASUREMENTS

  • Frequency band: 5-1250 MHz
  • Power meas. dynamic range: 25 to 125 dBμV, -45 to 65 dBmV
    BER Measurement: (pre) bBER up to 1 x 10-9 (post) aBER up to 1 x 10-9
  • MER Measurement: up to 40 dB (1 dB typ., 2 dB max.)

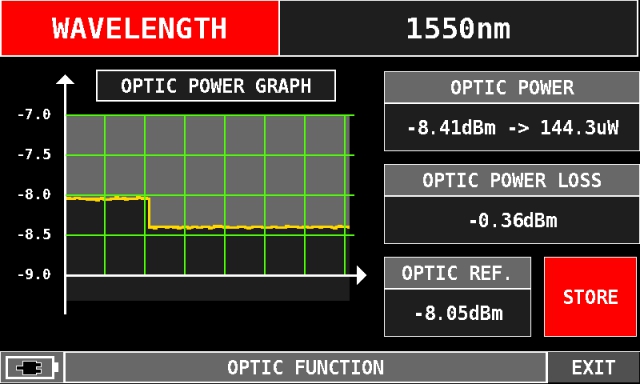

OPTICAL MEASUREMENTS

  • FC-ST-SC interchangeable input connectors
  • Automatic loss calculation
  • Wavelengths (nm): 850,1310, 1490, 1550
  • Range: -25 to 10 dBm
  • Resolution: 0.1 dB
  • Accuracy: +/- 0.5 dB
  • Optical to RF conversion

INGRESS & SPECTRUM MEASUREMENTS

  • Ingress scan spectrum
  • Frequency: 5 -65 MHz
  • Level: from 5 dBuV to 125 dBuV
  • Accuracy: +/- 2dB
  • BW: 100 KHz @ -3dB

LEAKAGE MEASUREMENTS

  • Frequency range: 115-140 MHz (USA), 250-430 MHz (EUROPE)
  • Resolution: 25 KHz
  • Antenna type: selectable

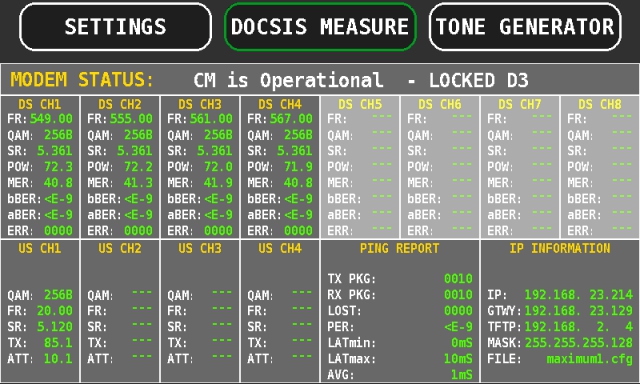

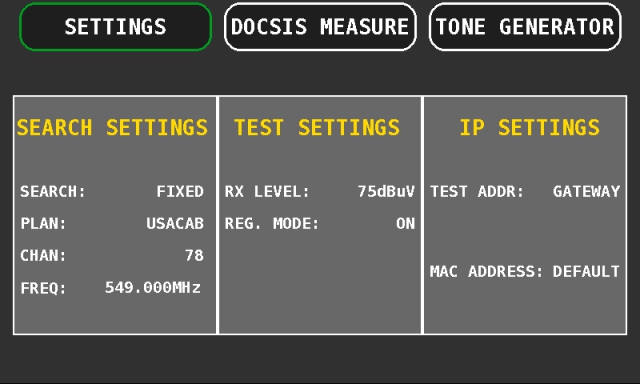

DOCSIS DOWNSTREAM MEASUREMENTS

  • DOCSIS 3.0 compliant modem (8×4 CH BONDING)
  • Frequency band: 5-1000 MHz
  • Input impedance: 75 Ω (interchangeable “F” connector)
  • Range: – 45 to + 65 dBmV
  • Measurements include: level/power, MER, pre/post BER, lost packet, transmit power, transmitted packets, received packets, PER, latency min/max avg, channel bonding upstream level and IP status
  • MAC address: default or user defined

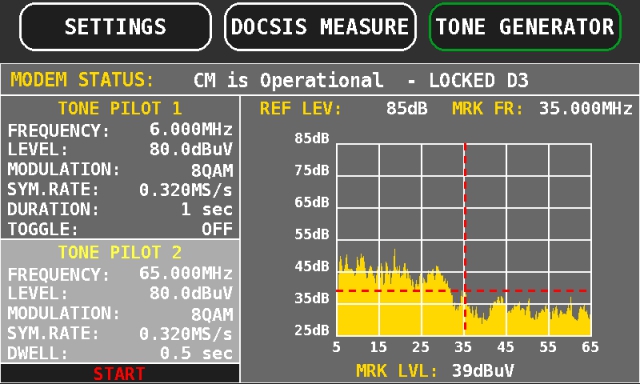

DOCSIS UPSTREAM & GENERATOR/TESTING

  • Tone generator frequency: 5-65 MHz
  • Modulation: QPSK, QAM, 8,16,32,64
  • Typical range: from 8 to 53 dBmV (1 dB typ., 2 dB max.)
  • Channel bonding: up to 4 upstream channels bonding supported ingress scan spectrum
  • Frequency range: 5-65MHz

COMM. PORTS

  • DOCSIS 3.0 and RF: F – Female
  • LAN: RJ45 10/100 Ethernet
  • USB 2.0: Type B (PC interface)
  • USB 2.0: Type A (USB drive)

GENERAL SPECIFICATIONS

  • Power supply: built in Li-Po rechargeable battery, external power supply 12 VDC – 1A
  • Battery duration at 25°C: 4 hours
  • Size: H 140 x W 240 x D 50 mm (meter only)
  • PC Interface: USB
  • Display: color LCD 7” (480px x 800px)
  • Front-panel: alpha numeric keypad
  • Power Save: TFT backlight timer, brightness adj.
  • PC Management: S.M.A.R.T software
  • Standard Accessories: – Soft carry case and strap – USB 2.0 cable – AC adapter – 12V automotive charging cable – RF & optical interchangeable connectors – S.M.A.R.T. software
  • AVAILABLE OPTIONAL APPs: DOCSIS 3.0 Cable Modem (4X4 or 8X4), optic input (opt.), HD DOLBY (opt.), HD MER Vs CARRIER (opt.), HD COAX cable reflectometer (opt.), HD remote control (opt.), DVB-C2 (opt.)

WARRANTY

  • According to your country’s laws (12 to 24 months)
  • All electronic parts, except batteries, bag and damage

Nota *: Tutte le caratteristiche tecniche possono subire variazioni e senza preavviso. Alcune opzioni vanno richieste al momento dell’ordine dello strumento.

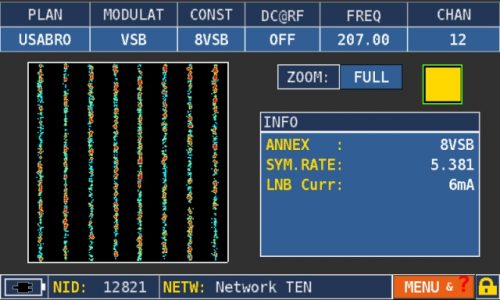

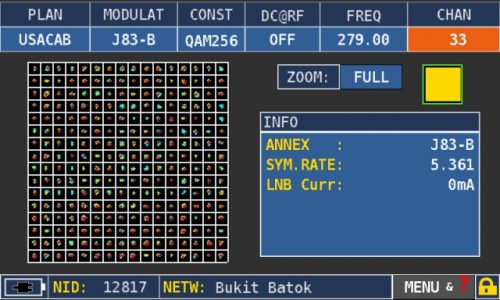

ROVER OMNIA 7000 VSB 8VSB constellation ROVER OMNIA 7000 J83-B QAM256 constellation
VSB constellation, on the right relative modulation parameters J83-B constellation, on the right relative modulation parameters

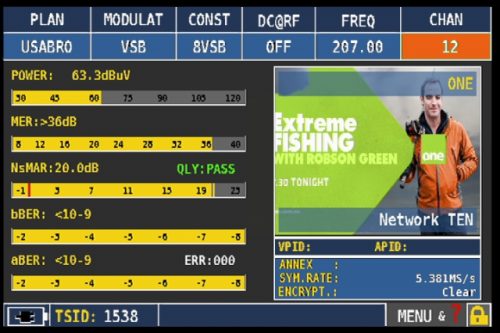

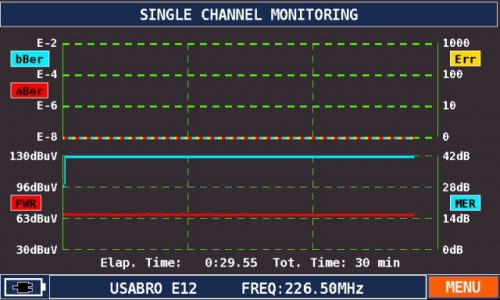

ROVER OMNIA SINGLE CHANNEL MONITORING ROVER OMNIA 7000 VSB 8VSB measures
Single channel monitoring (for example 30 minutes) VSB signal, all the measurements, picture and settings on one screen

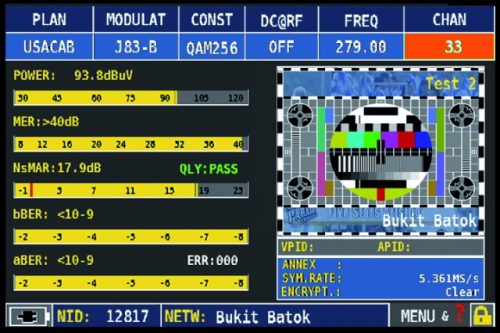

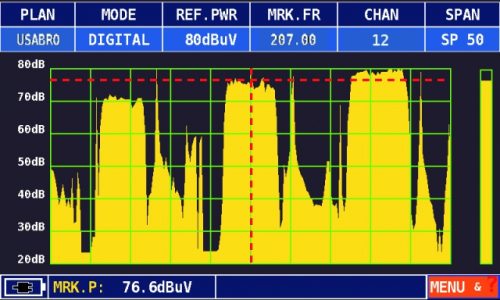

ROVER OMNIA 7000 J83-B QAM256 measures ROVER OMNIA 7000 TV spectrum
J83-B signal, all the measurements, picture and settings on one screen TV spectrum in real time, fast and superfast with memory peak. Detects and memorizes all the details for you

Nota *: I MENU (scritte e grafica) delle figure rappresentate, possono variare senza preavviso da modello a modello in base alla versione SW installata.

  • Currently not available

APP SW and HW optional *:

  • DOCSIS 3.0 cable modem (4X4 or 8X4)
  • Optic input
  • HD dolby
  • HD mer vs carrier
  • HD coax cable reflectometer
  • HD remote control
  • DVB-C2
  • DAB & DAB +

List of supplied accessories *:

  • Elite bag (1BAG-0230-G)
  • Universal side pocket for accessories (BAGS-05-ROVER)
  • Shoulder strap
  • Safety strap (BELT-40-NE)
  • USB 2.0 cable for PC connection (CAVO-USB-AM-BM)
  • Battery charger power supply 12 VDC – 1A (TRASF-12V-1A0-G-EU)
  • Quick guide (INFO-BAG-00)
  • User’s manual (CD) (UG-INSTRUM-CD)
  • Female F – female F adapter (CNN-F-0153)
  • Female BNC – female F adapter (TRA-BNCF-FFEM)
  • Female IEC – female F adapter (TRA-FFEM-CEIFEM)
  • Fast male F – female F adapter (TRA-FFEM-FMAS-1)
  • Plastic stylus for touch-screen display (INPUT-PEN-01)

Optional accessories list *:

  • Currently not available

Nota *: L’elenco delle opzioni e degli accessori, può subire variazioni senza preavviso e dipende dalla configurazione dello strumento.
