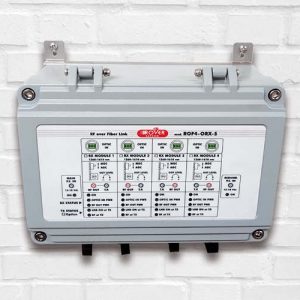

ROF4: Optical Link

Modular outdoor single RF over fiber link
Extended band = 45 – 3.000 MHz

ROVER SATCOM - ROF1 and ROF4 BANNER mobile

  • 45-3000 MHz for HTS Ku/Ka-band

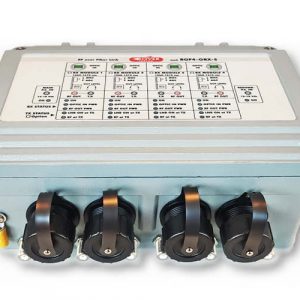

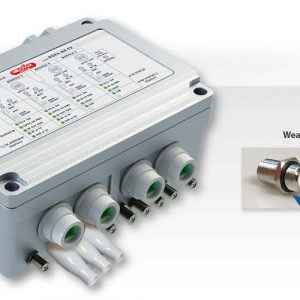

  • RF & Optic Weatherproof connectors
  • It can accomodate 4 TX or 4 RX or 2 TX & 2 RX
  • IP67 enclosure, Direct Antenna mounting
  • Transport all format, RF, SATCOM, GPS, TV, DAB, FM
  • MGC adjust or AGC modes
  • RF monitor Port for peaking or distribution
  • 2 Redundant PSU connectors
  • Built-in LNB PSU, 13/18 V/22 KHz
  • LNB current monitor Led at RX (opt.)
  • RF laser drive monitor Led at RX (opt.)
  • 5 years Warranty, Reliable Support & Training
