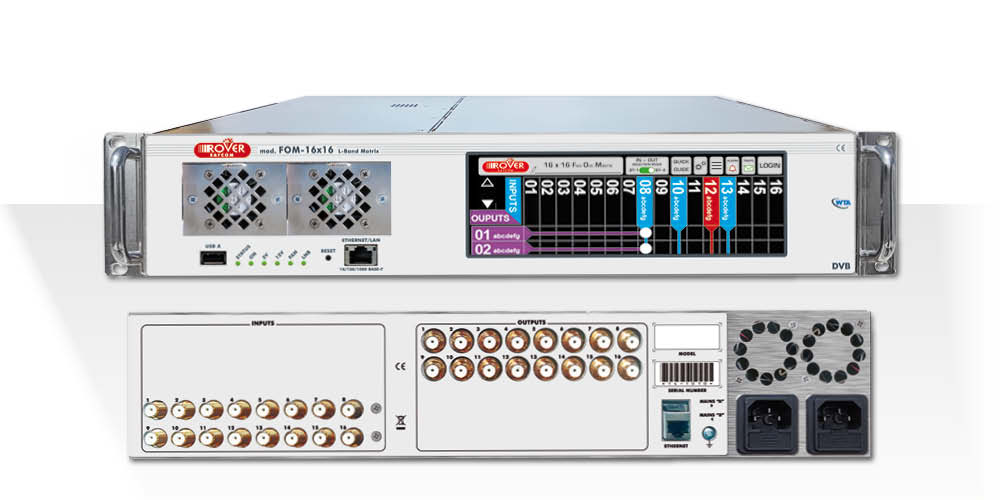

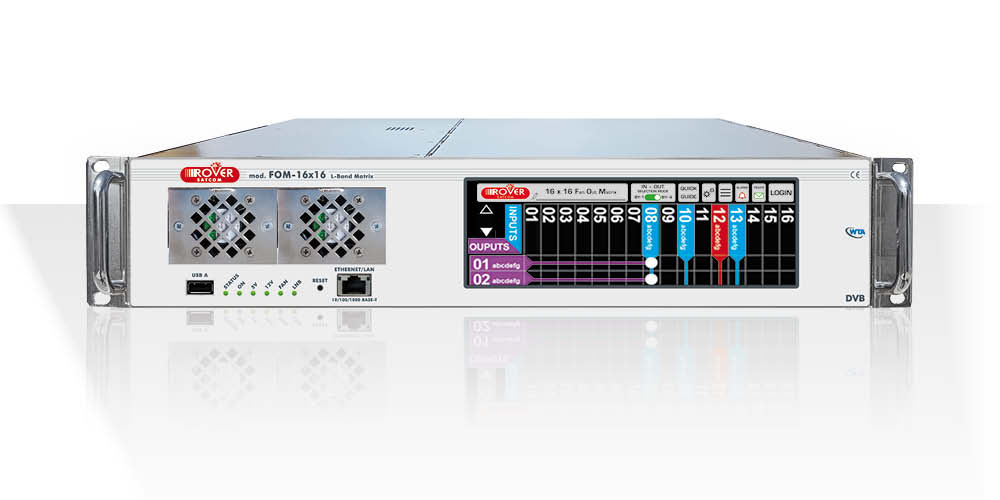

16 x 16 EXTENDED L-BAND FAN OUT MATRIX

FOM16x16

RF Band: 900-2200 MHz – 5 years Warranty – Cost effective System

ROVER SATCOM - FOM16x16
  • POWER SUPPLY REDUNDANCY
  • RF POWER SENSING
  • VARIABLE GAIN MGC OR AGC
  • COMPACT: 16 INPUTS & 16 OUTPUTS IN 2U RACK
  • LOCAL CONTROL VIA 8” CAPACITIVE TOUCH DISPLAY
  • REMOTE MONITORING: WEB GUI & SNMP
  • HIGH RF PERFORMANCE
  • LNB POWERING
  • INTUITIVE AND FAST USER’S INTERFACE
  • Space saving 16 Inputs & 16 Outputs in only 2U Rack
  • Extended L-Band frequency range 900-2200 MHz
  • New cost-effective System
  • Available with different RF Input/Output connectors: F 75 Ω, BNC 75 Ω, BNC 50 Ω, SMA 50 Ω
  • Selectable Automatic or Manual Gain Control
  • RF Power measure for all Inputs and all Outputs
  • Remote monitoring & management of all active components
  • 8” Local capacitive display for local setup and monitoring

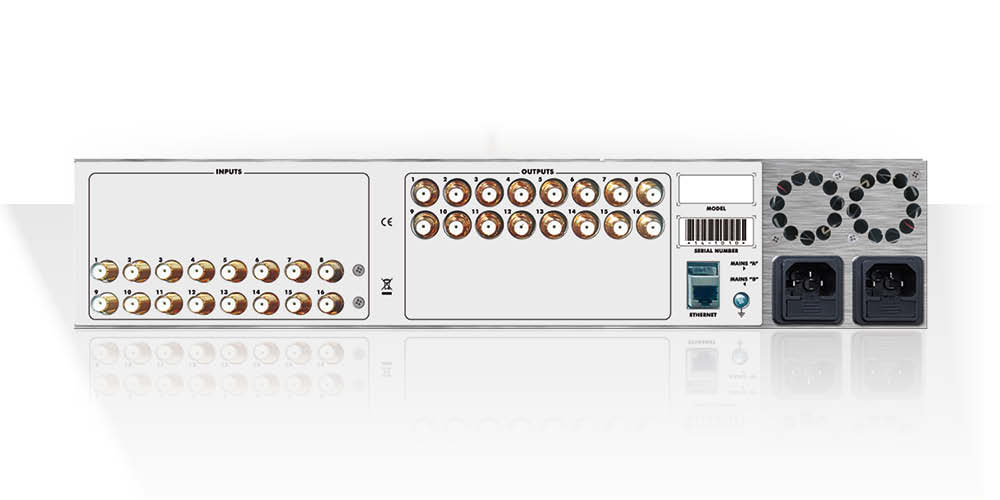

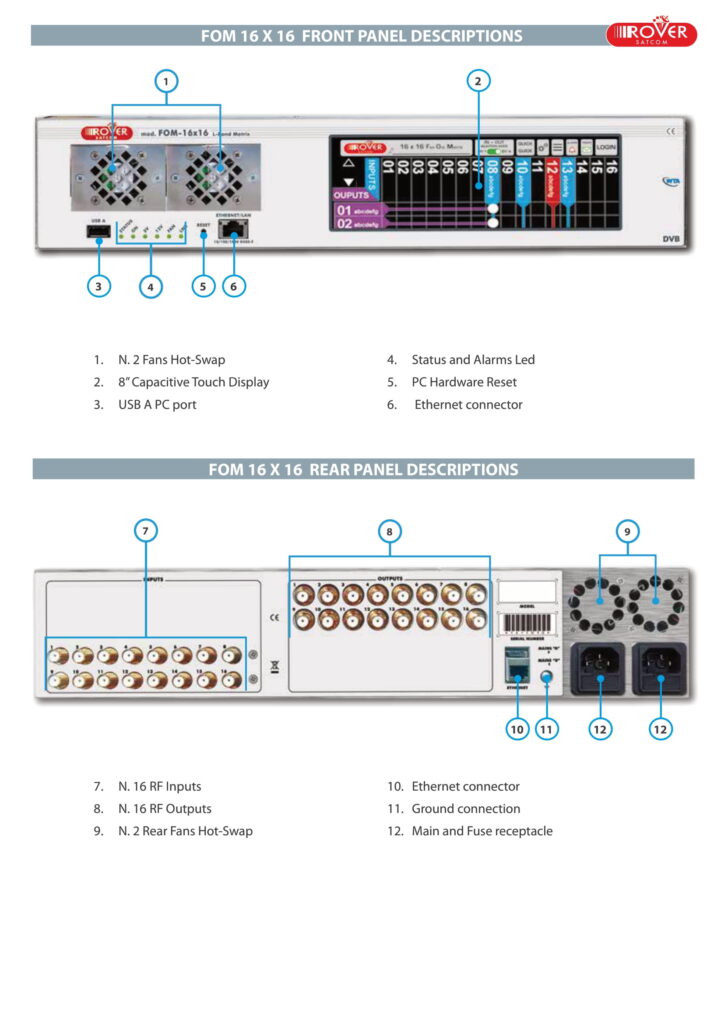

ROVER SATCOM - 16 x 16 EXTENDED L-BAND FAN OUT MATRIX - FOM-16x16 Physical & Connections

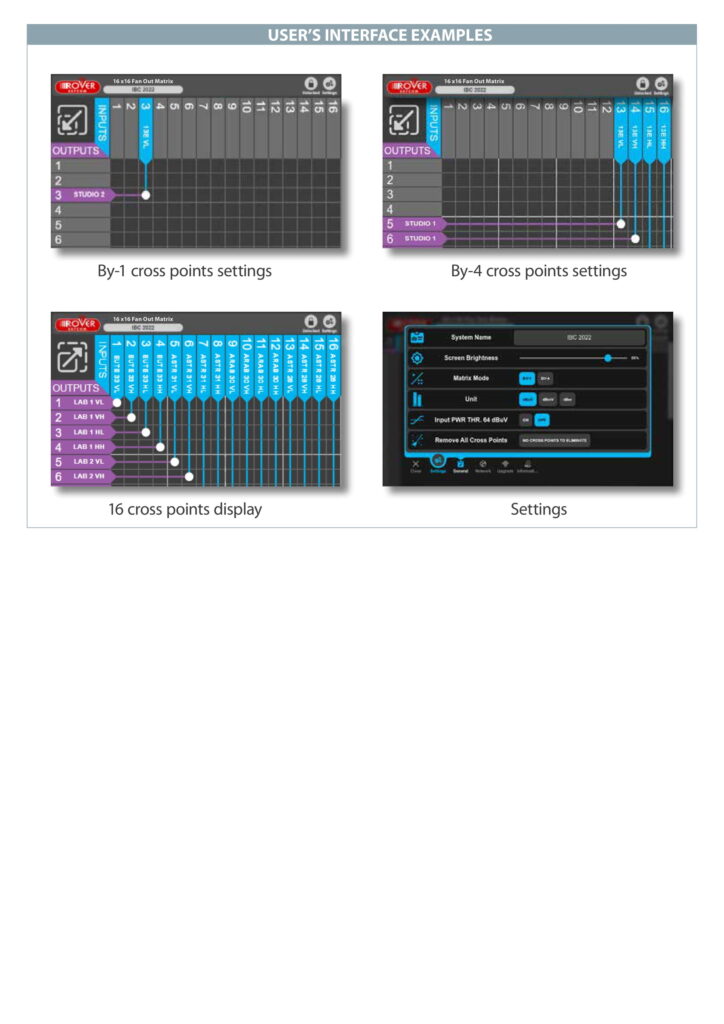

ROVER SATCOM - 16 x 16 EXTENDED L-BAND FAN OUT MATRIX - FOM-16x16 Users's Interface Examples

ROVER SATCOM - Equipment Index V8_5-01
