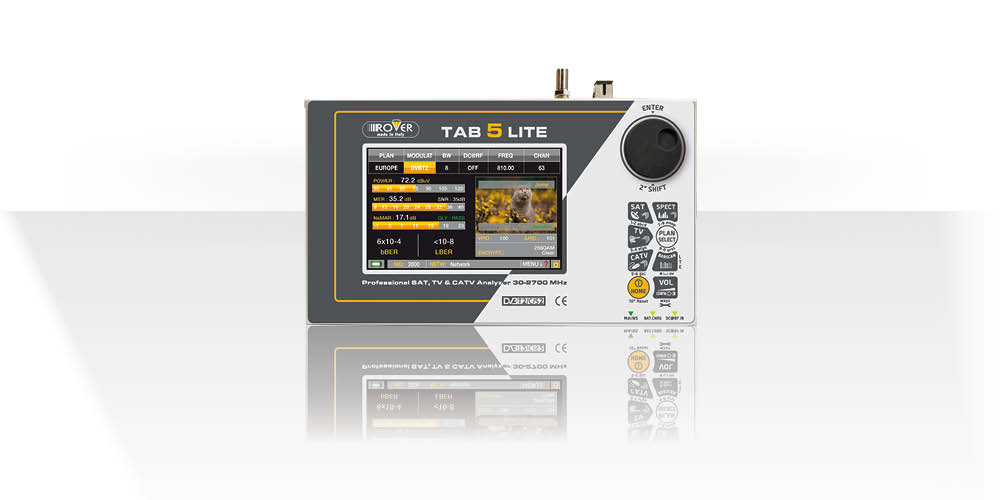

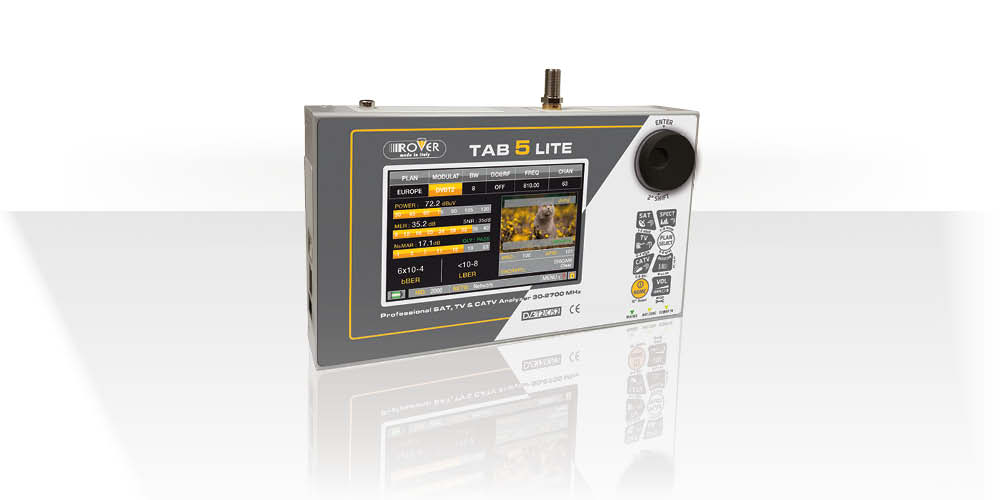

Easy & Combined Field Meter

TAB 5 LITE

Automatic, fast & easy to use

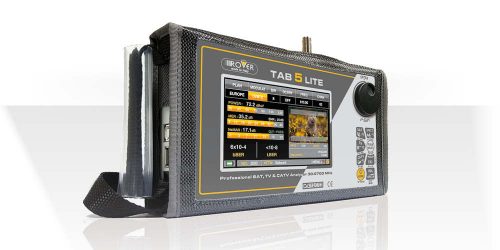

ROVER Instruments - TAB 5 LITE a

SPECIAL FUNCTIONS

  • Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode;
  • Automatically identifies all the signals with digital modulation SAT- TV & CATV;
  • Automatic Assistant: Signal quality analysis, channel scan memorization;
  • Barscan TV & CATV function from 10 to 100 channels on one screen.
  • Buzzer & noise margin real time graph for digital signals microinterruptions;
  • Reflectometric measurements APP (opt.);
  • SATELITE: DiSEqC – SCR & dCSS commands, SAT finder & SAT expert functions;
  • Custom channel plans: 25 (199 ch. per plan), programmable TV, SAT (or combined TV/SAT) by PC or local keyboard;
  • Loggers: TV, SAT & combined with stop & go function;
  • SAT Memory Plan: More than 2.000 transponders prememorized for world wide satellite;
  • Free SMART PC interface program and FW upgrades.

SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES

  • Frequency Range: TV, CATV & Radio: 30-1000 MHz; SAT: 700–2700 MHz;
  • Frequency resolution: TV & CATV 25 KHz; SAT: 5 MHz;
  • Power range meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV;
  • Digital Meas: Digital power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER;
  • Measurement resolution: 0.1 dB;
  • Level measurement accuracy: 1 dB typ. (2 dB max.);
  • Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB;
  • Constellation: for TV/CATV and SAT signals;
  • Spectrum: Fast spectrum, max hold and spectrum memorization with real time compare function;
  • Net-id on board: Net-id, NID, TSID, LCN, SAT orbit position;
  • Echoes, Pre-echoes, Micro-echoes: Representation in real time;
  • Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL;
  • Digital Pictures: MPEG2-4 SD & HD, pictures with program list, Audio Video PIDs, LCN, Video bit Rate all on one screen.

COMM. PORTS AND OUTPUTS

  • RF Input : 75 ohm interchangeable “F”;
  • USB 2.0: Type B (PC Interface);
  • Audio: AAC supplied, DOLBY (opt.);
  • Video: Composite video input.

GENERAL SPECIFICATIONS

  • 5” TFT TOUCH display: 16:9 high resolution and high brightness;
  • Power supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & battery test function;
  • DC voltage at RF input: 5 – 12 – 18 & 24 VDC, DiSEqC – SCR & dCSS commands;
  • PC Interface: USB-B;
  • Front-Panel: Alpha numeric keypad;
  • Power Save: TFT backlight timer, brightness adj;
  • PC Management: SMART software;
  • Weight: only 1,4 Kg with batteries;
  • Size: H 13,0 x W 25,5 x D 4 cm;
  • Housing: Aluminium and Steel and Light bag. (Elite bag with extra pdding optional.)

NOTE:

  • All technical features can change without notice;
  • Some options (APP) must be requested when ordering the instrument;
  • The screens and the texts of the relative MENU, can change without notice from model to model and according to the SW version installed
  • Visit WWW.ROVERSHOP.IT to check the available accessories.

ROVER Instruments - Cross reference 2022 v6

NOTE:

ROVER HD TAB 900 Series SAT WB
New icon navigation menu SAT spectrum

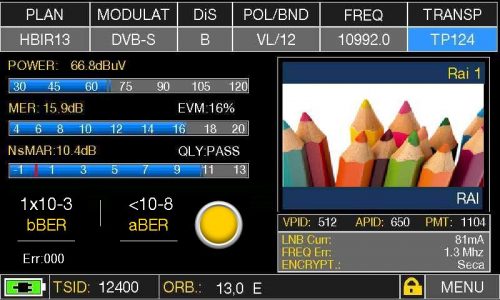

ROVER HD TAB 900 Plus - MEAS TP 124 ROVER HD TAB 900 Series SAT FINDER

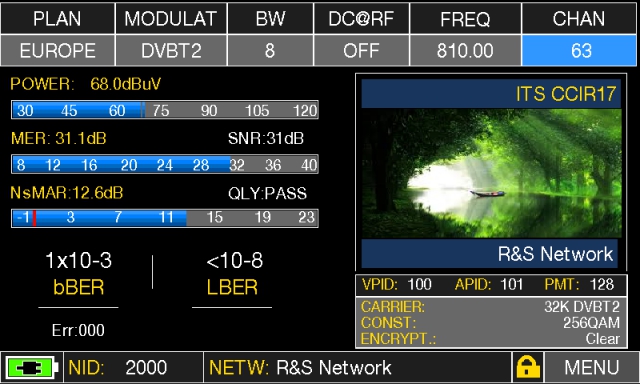

New measurements display & pictures SAT finder function

NOTE:

  • All technical features can change without notice;
  • Some options (APP) must be requested when ordering the instrument;
  • The screens and the texts of the relative MENU, can change without notice from model to model and according to the SW version installed;
  • Visit WWW.ROVERSHOP.IT to check the available accessories.
  • Click here to access the “VIDEO” section;
  • Click here to go directly to the dedicated “VIDEO” on our “YOUTUBE” page.

NOTE:

  • All technical features can change without notice;
  • Some options (APP) must be requested when ordering the instrument;
  • The screens and the texts of the relative MENU, can change without notice from model to model and according to the SW version installed;
  • Visit WWW.ROVERSHOP.IT to check the available accessories.

SW and HW APPs supplied as standard options *:

  • LTE analysis;
  • Echoes Analysis;
  • MER vs carrier analysys;
  • SAT expert function;
  • SAT finder function.

SW and HW optional APPs (NOT supplied as standard opions) *:

  • Reflectometer function Application (SW);
  • DOLBY AC3DD+ Audio Application (SW).
List of accessories supplied as standard options *:
  • Easy bag with shoulder strap;
  • USB 2.0 CABLE for PC connection (CAVO-USB-AM-BM);
  • 12 VDC – 3A battery charge POWER SUPPLY;
  • User GUIDE on USB pen (USB-PENDRIVE-02);
  • F Female – F Female CONNECTOR (CNN-F-0153).
