MANUMEMORY: How to create a TV MANUAL MEMORY PLAN directly in the instrument via its keyboard

IMPORTANT:

1) This STANDARD PROCEDURE is valid for all ROVER and PRIME DIGITAL models with SINGLE DISPLAY TFT color, writing and graphics can vary from model to model;
2) For TOUCH-SCREEN models, you can select functions directly without rotating the ENCODER.

For the HD TAB 4, TAB 7, TAB 700, TAB 900, TAB 9 and PROTAB Series
For the EASY METER Serie by PRIME DIGITAL
For the HD LIGHT, COMPACT, FLASH, TOUCH and PRO
For the ATOM LIGHT Series
For the ATOM POWER, DIGICUBE and TOUCHMETER

Using the instrument keyboard you can create directly in the instrument, MANUAL MEMORY PLANS, such as MANU 1MANU 2MANU 3, etc., by storing a list of your favorite TV channels.

STANDARD PROCEDURE:

1) Turn on the instrument,

2) Make sure you have selected your language,
3) Press the “TV” key,
4) Press the “HOME” key,

5) Rotate the encoder and select the “MEMORY” icon (Figure 1),

ROVER HD Series MEMORY
Figure 1: HOME MENU, MEMORY icon selection

6) Press the encoder to confirm,

7) Rotate the encoder and select “MANUMEMORY” (Figure 2),

8) Press the encoder to confirm,

9) Press the encoder again,

10) Rotate the encoder and select a free “PLAN” manual memory of your choice: for example “MANU 2” (Figure 2),

11) Press the encoder to confirm,

12) Rotate the encoder and select “START EDIT” (Figure 2),

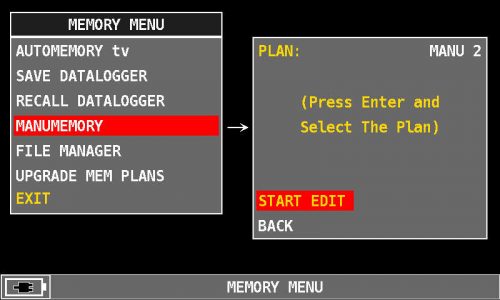

ROVER HD Series MANUMEMORY START EDIT
Figure 2:“MANUMEMORY”“PLAN” and “START EDIT” written selection

13) Press the encoder to confirm,

14) Press the encoder again,

15) Rotate the encoder and select “MODIFY ITEM” (Figure 3),

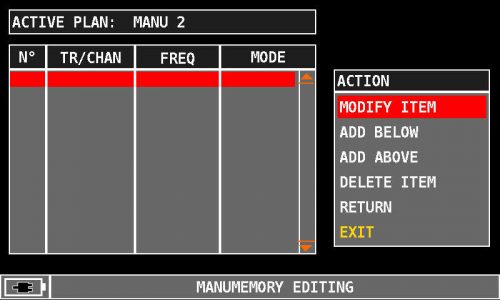

ROVER_HD_Series_MANUMEMORY_MODIFY_ITEM
Figure 3: “MODIFY ITEM” written selection

16) Press the encoder to confirm,

17) Rotate the encoder and select “MODE” (Figure 4),

18) Press the encoder to confirm,

19) Rotate the encoder and select “DVBT&T2” (Figure 4),

20) Press the encoder to confirm,

21) Rotate the encoder and select “CHANNEL” (Figure 4),

22) Press the encoder to confirm,

23) Rotate the encoder and select the TV channel you want to store (eg E5),

24) Press the encoder to confirm,

25) Rotate the encoder and select “BW” (bandwidth) (Figure 4),

26) Press the encoder to confirm,

27) Rotate the encoder and select the exact baum width value:

  • “7” MHz for all VHF and CATV channels up to 300 MHz;
  • “8” MHz for all UHF channels from 300 MHz ≥ CATV;
  • AUSTRALIA “7” MHz for all VHF-CATV-UHF channels;
  • USA “6” MHz MHz for all VHF-CATV-UHF channels

28) Press the encoder to confirm,

29) Rotate the encoder and select “SAVE?” (Figure 4),

ROVER HD Series MANUMEMORY SAVE
Figure 4: Selecting all parameters and “SAVE?”

30) Press the encoder to confirm (Figure 5),

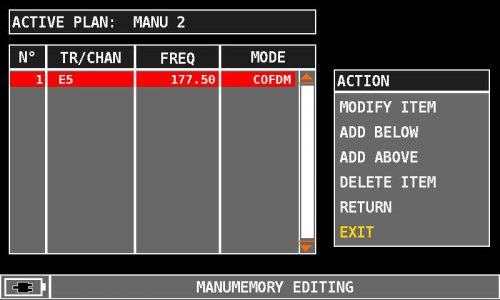

ROVER HD Series MANUMEMORY E5
Figure 5: Manual channel memory created

31) To continue adding a new channel below the previously stored channel to the same MANUAL MEMORY, select “ADD BELOW” (Figure 6) and proceed as indicated in step 20 forward,

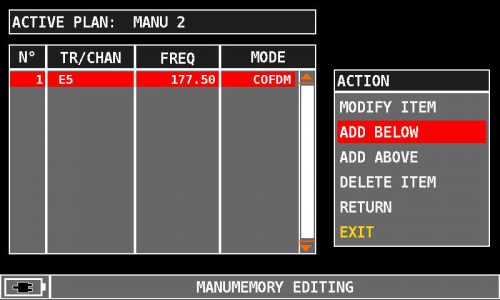

ROVER HD Series MANUMEMORY E5 ADD BELOW
Figure 6: “ADD BELOW” written selection

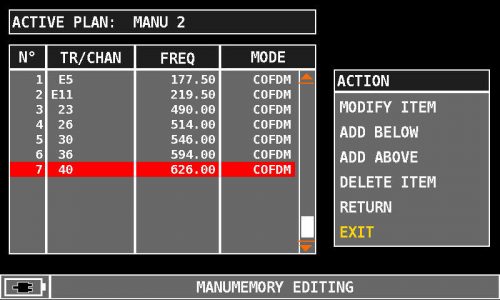

ROVER HD Series MANUMEMORY 40
Figure 7: Channels E11, 23, 26, 30, 36 and 40 added under channel E5

32) To add in the same channel NEW MEMORY channel above the previously stored channel (in the example of Figure 8 the channel 23), select the word “ADD ABOVE” (Figure 8) and proceed as indicated in point 20 forward,

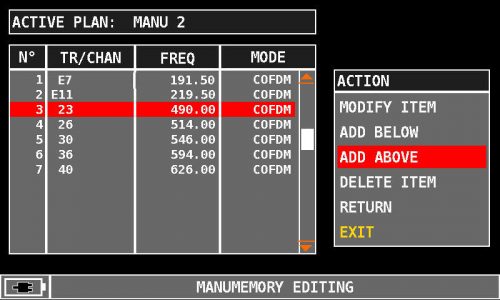

ROVER HD Series MANUMEMORY 23 ADD ABOVE
Figure 8: “ADD ABOVE” written selection

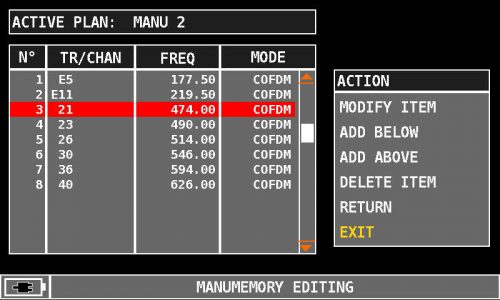

ROVER HD Series MANUMEMORY 21
Figure 9: Channel 21 added on channel 23

33) To replace a previously stored channel, after selecting the channel to be edited (in the example shown in Figure 10, channel E5), select “MODIFY ITEM”  (Figure 10) and proceed as follows As indicated in step 20 above,

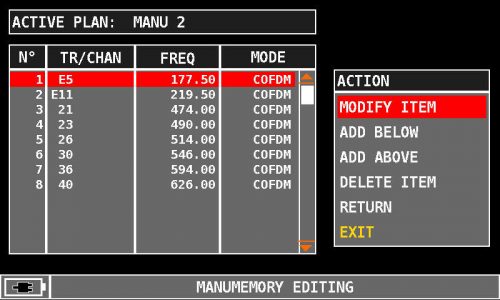

ROVER HD Series MANUMEMORY E5 MODIFY ITEM
Figure 10: “MODIFY ITEM” written selection

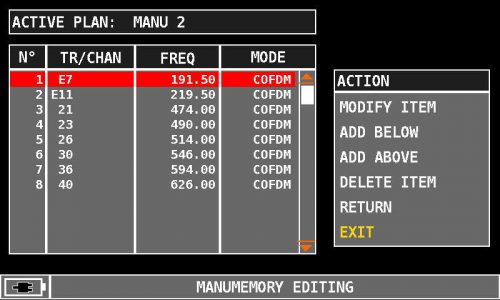

ROVER HD Series MANUMEMORY E7
Figure 11: Channel E5 edited in E7

34) To delete a previously stored channel, after selecting the channel to be deleted (in the example of Figure 12, channel 36), select the “DELETE ITEM” message (Figure 12).

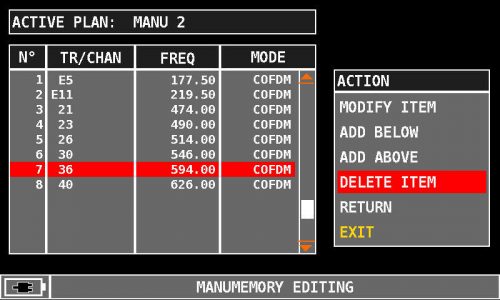

ROVER HD Series MANUMEMORY 36 DELETE ITEM
Figure 12: “DELETE ITEM” written selection

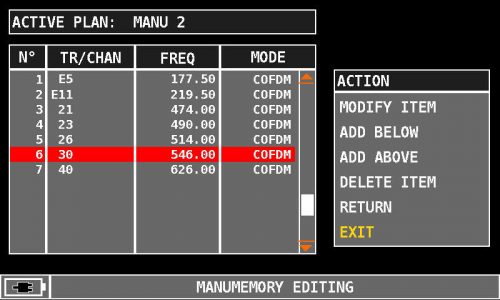

ROVER HD Series MANUMEMORY 30
Figure 13: Channel 36 deleted

Note: The MENU (written and graphic) of the figures shown in the following “F.A.Q.” may vary from model to model or depending on SW upgrade and without notice.
