Dual & Triple PLL – Block Down Converter

TLT/BDC3

Ku/Ka-Band agile Block Down Converter

ROVER SATCOM - BDC3-3
  • Dual & Triple Ku/Ka Block Down Converter :
    – Dual Simultaneously Low & High Ku-Band
    – Triple Selectable Low/High Ku & DBS Band
  • Coax SMA In-Out connectors
  • Internal or ext. 10 MHz REF
  • Very Low phase Noise
  • High P1 dB and IP3
  • Large operating Temper. range
  • For Outdoor and Indoor use
  • Agile L.O., 9,75/10,00/10,60/10,75/11,80/12,65/16,15 GHz
  • Adjust. GAIN, 5 to 35 dB
  • Remote Control & Monitor Alarms
  • Low profile for 1U Rack mount
  • Stand alone or Rack configuration
  • Dual Redundant configuration Available
  • 5 years Warranty, reliable support and training
  • The BDC2-X is a HIGH STABILITY LOW PHASE NOISE DUAL BAND “PLL” BLOCK DOWN CONVERTER.
  • It allow to cover simultaneously the full Ku-Band, Frequency range thanks to the two Outputs, LOW and HIGH Band.

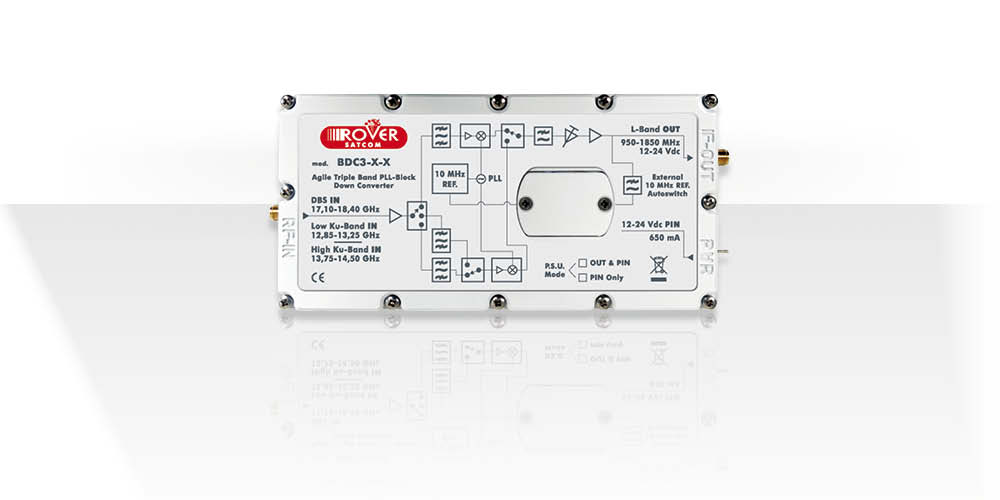

  • The BDC3-X is a HIGH STABILITY & LOW PHASE NOISE AGILE TRIPLE BAND “PLL” BLOCK DOWN CONVERTER.
  • It allow to select all the Ku & DBS Up-Link Band Frequency range, thanks to the switchable L.O. and B.P. filters.
  • All designed for indoor and outdoor applications, they can work in a vaste temperature range and are designed to be easily customized in 1U Rack.
  • Ideal for Professional use, like Redundancy, Distribution & Monitoring, they are corrently the best value for money.
