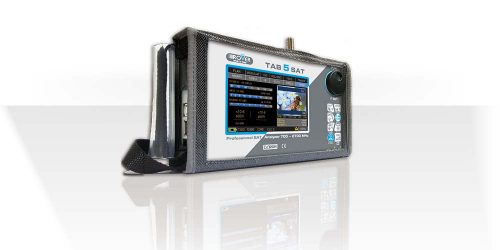

The most complete Satellite Meter

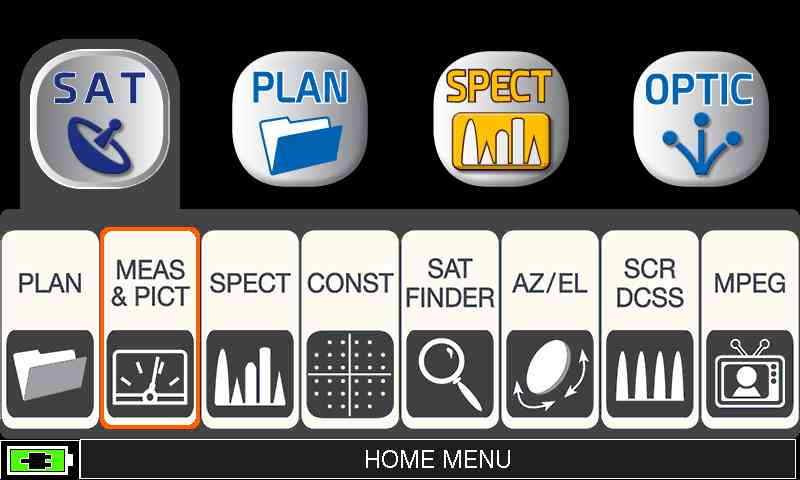

SPECIAL FUNCTIONS

• Automatically identifies all the signals with digital modulation DVB-S & DVB-S2;
• Automatic assistant: Signal quality analysis;
• Buzzer & noise margin real time graph for digital signals microinterruptions;
• Optical input (opt.);
• 2.4 & 5 GHz Wi-Fi analyzer (opt.);
• HEVC H265 decoder (opt.);
• SATELITE: DiSEqC-SCR & dCSS commands, SAT finder & SAT expert functions;
• Custom channel plans: 25 (199 ch. per plan), programmable SAT by PC or local keyboard;
• Loggers: With stop & go function;
• SAT memory plan: More than 2.000 transponders prememorized for world wide Satellite;
• Free SMART PC interface program and FW upgrades.

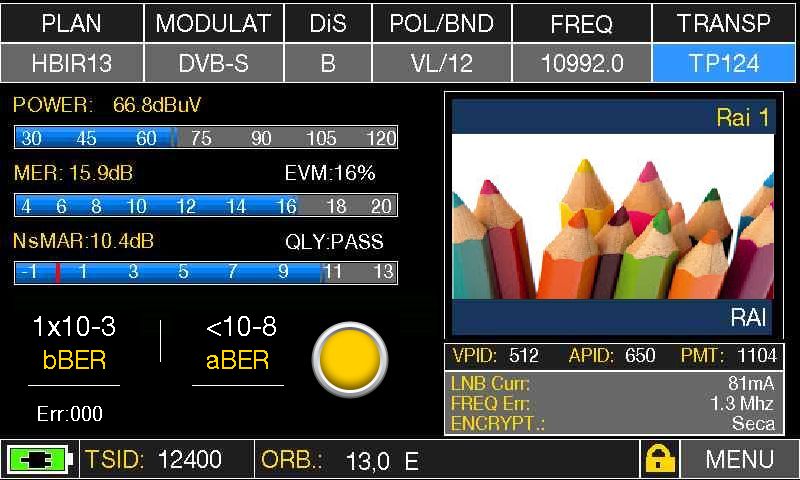

SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES

• Frequency range: 700–2700 MHz;
• Frequency resolution: 5 MHz;
• Power range meas.: 5 to 105 dBμV;
• Digital meas: Digital power, MER (20 dB max depending on modulation), BER, PER, LDPC, BCH, noise margin;
• Measurement resolution: 0.1 dB;
• Level measurement accuracy: 1 dB typ. (2 dB max.);
• Resolution filter bandwidth: 5 MHz @ -3 dB;
• Constellation;
• Spectrum: Fast spectrum, max hold and spectrum memorization with real time compare function;
• Net-id on board: Net-id, NID, TSID, SAT orbit position;
• Quality: Digital auto quality Test: PASS-MARGINAL & FAIL;
• Digital pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with program list, audio video PIDs, video bit rate all on one screen.

OPTICAL MEASUREMENTS

• SC input connector;
• Automatic loss calculation;
• Wavelengths (nm): 1310, 1490, 1550;
• Range: -25 to +6 dBm;
• Resolution: 0.1 dB;
• Accuracy: +/- 0.5 dB;
• Optical to RF conversion.

COMM. PORTS AND OUTPUTS

• RF input : 75 ohm (interchangeable “F”);
• USB 2.0: Type B (PC Interface);
• Audio: AAC supplied, DOLBY (opt.);
• Video: Composite video input.

GENERAL SPECIFICATIONS

• 5” TFT TOUCH display: 16:9 high resolution and high brightness;
• Power supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & battery test function;
• DC voltage at RF input: 12 – 18 VDC, DiSEqC – SCR & dCSS commands;
• PC interface: USB-B;
• Front-panel: Alpha numeric keypad;
• Power save: TFT backlight timer, brightness adj;
• PC management: SMART software;
• Weight: only 1,4 Kg with batteries;
• Size: H 13,0 x W 25,5 x D 4 cm;
• Housing: Aluminium and steel, bag.

OPTIONS

• Optic ingress to be requested when ordering the instrument, which can only be installed at ROVER
• Decoding HEVC H265 images;
• 2.4 & 5 GHz Wi-Fi analyzer.
• Dolby Audio AC3 DD+;
• Elite bag with extra padding.

NOTE:

• All technical features can change without notice;
• Some options (APP) must be requested when ordering the instrument;
• Visit WWW.ROVERSHOP.IT to check the available accessories.
